One-Shot production line Knobel

One-Shot production line Knobel

Contact us for price

Location:Bad Salzuflen, Germany

orCall +49 (0) 52 22 / 98 47 - 0

Description

used One-Shot machine KNOBEL Type KCM-24/48, year of construction 2007, consisting of:

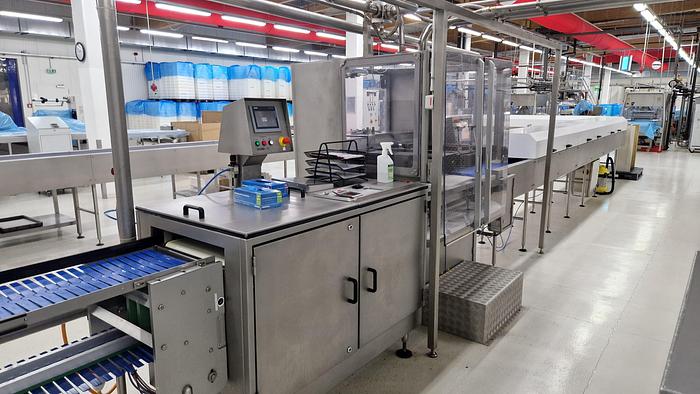

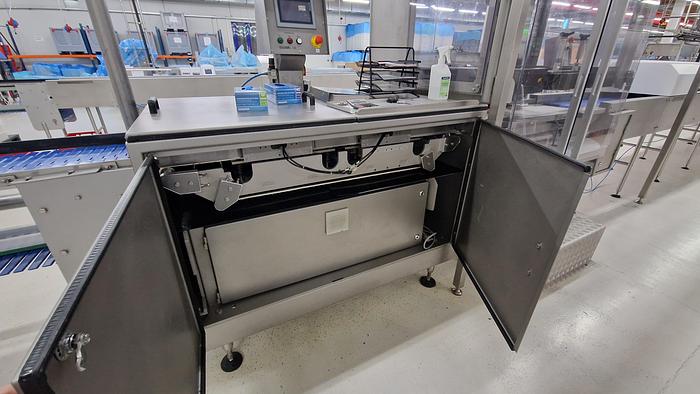

- Casting machine type KCM 24/48 Alpha Compact.

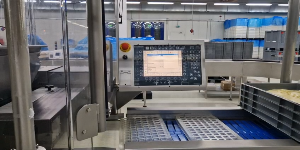

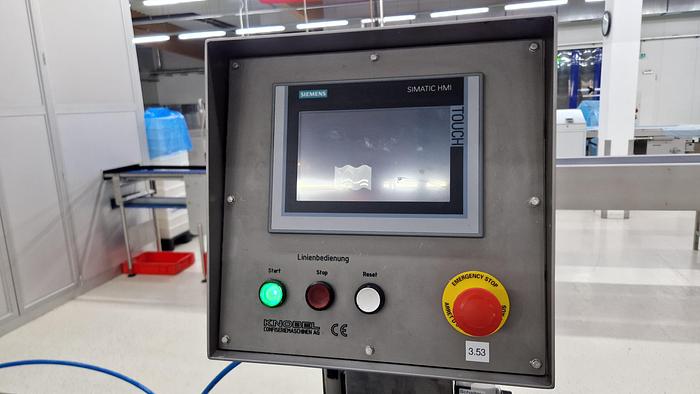

- Vibrating belt conveyor with SIEMENS touch panel Simatic HMI.

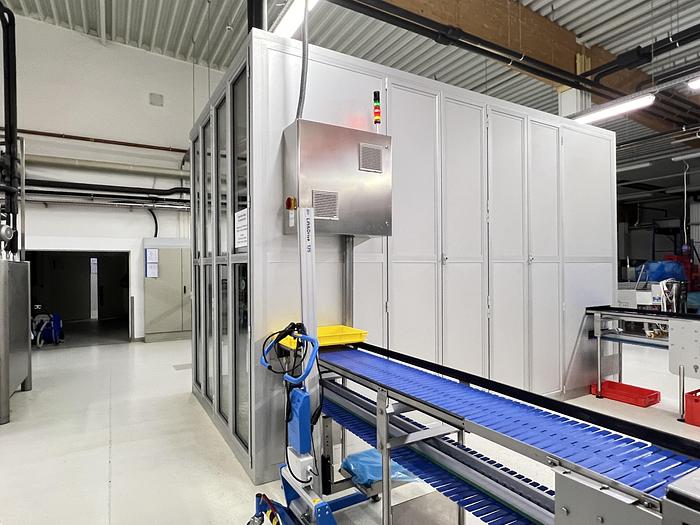

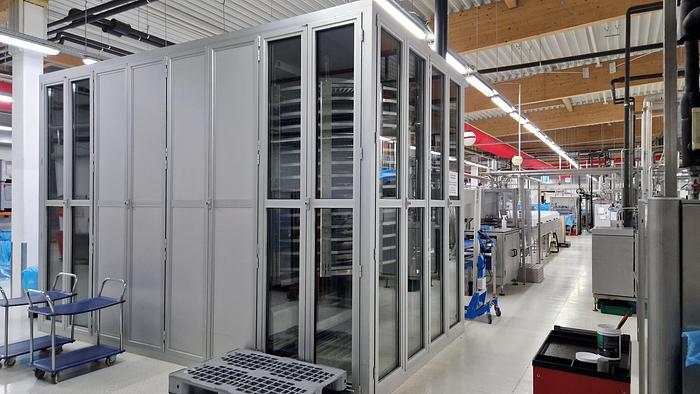

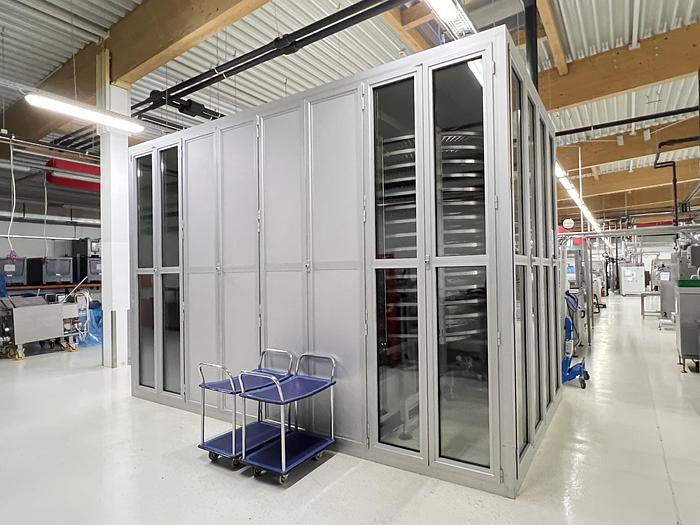

- Spiral cooler type Pos.4.0, built in 2007, with two coils for upward and downward transport of the moulds. Length of the cooling section approx. 57 metres - duration approx. 45 minutes.

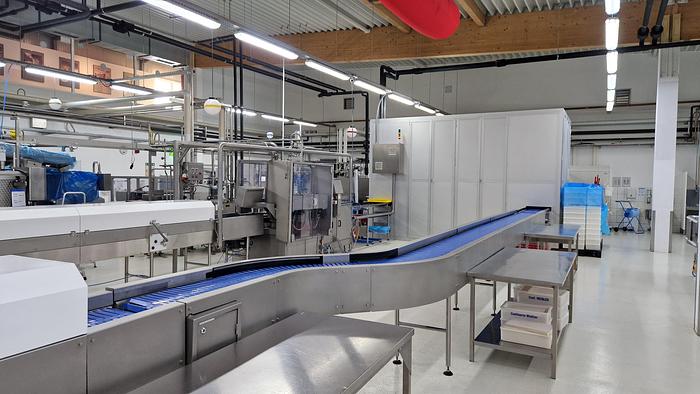

- Transport screw (3 x 2 mtr. segment) for manual removal of the products and reloading of the empty moulds onto the belt. In addition, a Z-piece (right-left) to reduce the width of the system, with drive motor.

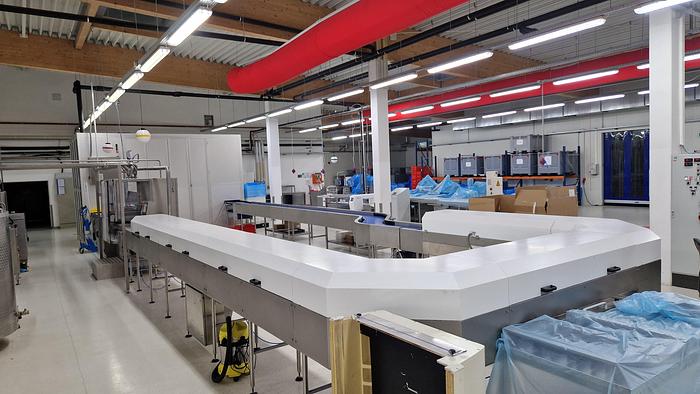

- 180° right-hand bend with 5 x 2-mtr. bonnets and 2 x 90° bonnets covered as mould heating section type Pos.1.1-KB, built in 2007.

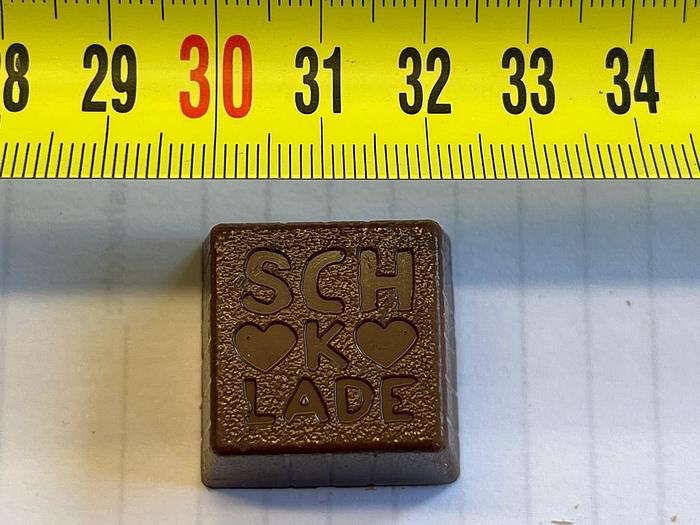

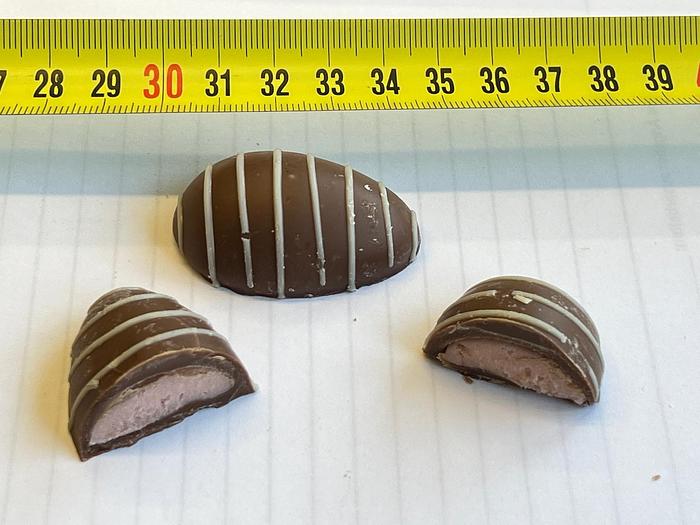

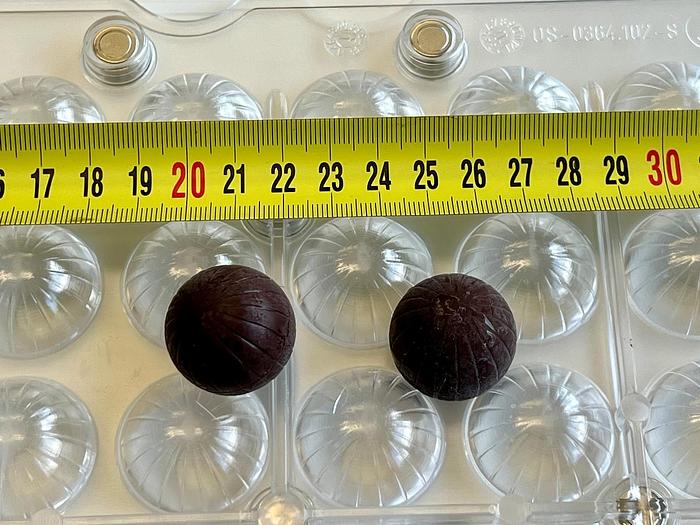

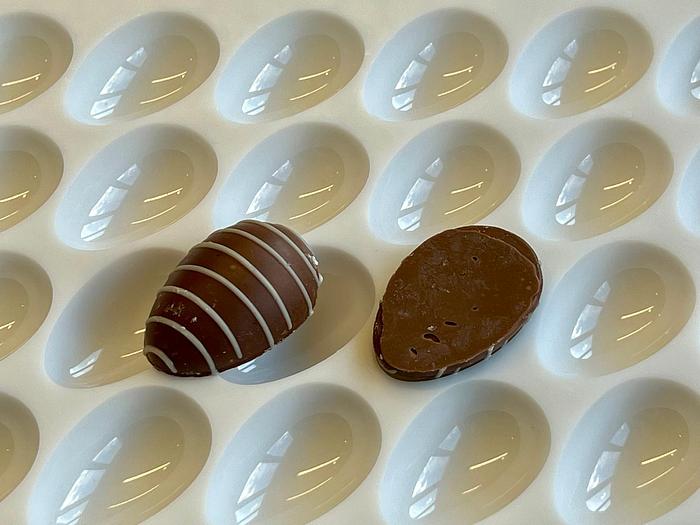

In addition, there are four mould sets for carree, half-egg, pots and mini truffles, as well as three nozzle sets in a mobile tool box.


Specifications

ManufacturerKNOBEL
ModelKCM 24/48 Alpha Compact
Year2007
ConditionUsed
Stock NumberG13049
