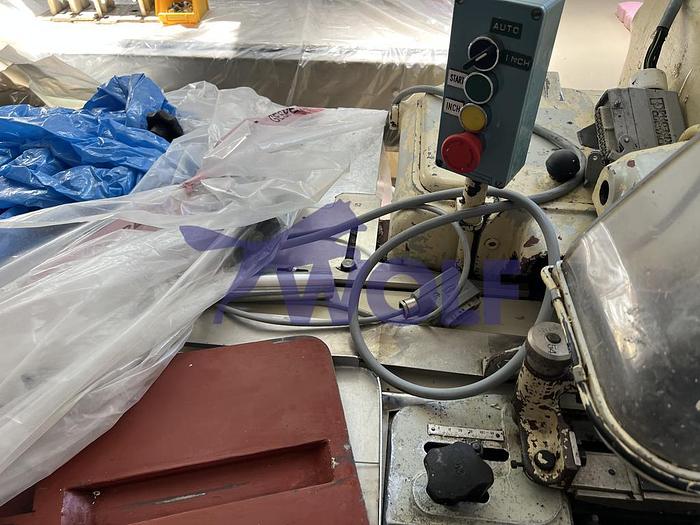

Bar packing machine make SIG - type CK for two packing materials.
Bar packing machine make SIG - type CK for two packing materials.
Contact us for price
Location:Bad Salzuflen, Germany
Description
The machine as a single-station packing machine for packing molded bars and bars, as well as wafer products. The wrapping is done with two wrapping materials, which are wrapped around the product together in one working cycle. The inner wrapping is done with aluminum foil from the roll and the outer wrapping is done as a full wrapping with paper from the stack. If no product is fed, no wrapping material is taken off. A pafraleim station is mounted for sealing and in the discharge the packed articles are held by brushes. The machine in compact design and automtaic oil shower lubrication for long life.
Capacity : approx. 200 packs per minute
Size range: minimum approx. 70 x 17 x 10 mm or 70 x 22 x 4 mm
maximum approx. 140 x 45 x 17 mm or 140 x 55 x 12 mm
Dimensions : approx. 2,720 x 2,000 1,300 mm
Net weight : approx. 1,600 kg
All dimensions according to the manufacturer's brochure description, although equipment features may differ from the standard.
Capacity : approx. 200 packs per minute
Size range: minimum approx. 70 x 17 x 10 mm or 70 x 22 x 4 mm
maximum approx. 140 x 45 x 17 mm or 140 x 55 x 12 mm
Dimensions : approx. 2,720 x 2,000 1,300 mm
Net weight : approx. 1,600 kg
All dimensions according to the manufacturer's brochure description, although equipment features may differ from the standard.
Specifications
Manufacturer | SIG |
Condition | Used |
Stock Number | S10712 |
